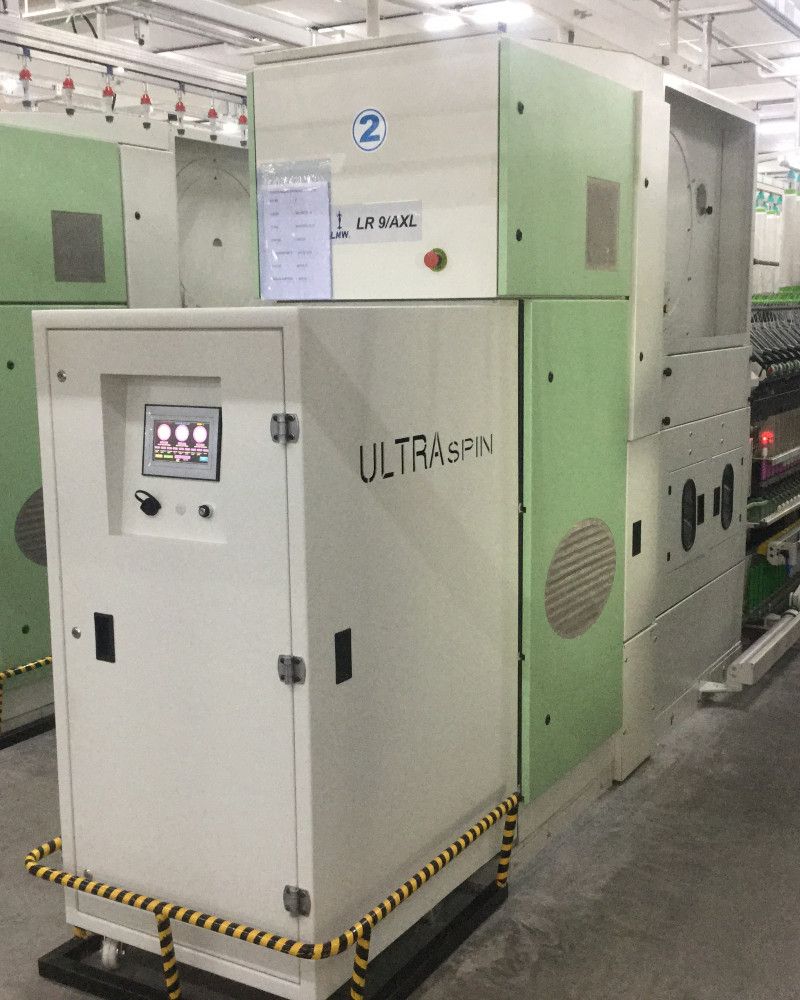

Slub Yarn Attachment

The strength of our ULTRAspin is in motion controller with direct drive system without belt and chain for transmission of speed. We are the only manufacturer using this motion controller which is normally used in Ultra precision CNC machines, robotics, and in sophisticated electronics parts assembling.

With the combination of motion controller and servo motor with drive, our ULTRAspin could achieve very high synchronization control between front and bottom rollers which is at heart of any slub making machine and this will also aids to measure length of slub very precisely

ULTRAspin drafting system has separate drive for middle and back bottom rollers and the delivery roller is driven separately by another servo controlled motor. The independently driven bottom rollers of the drafting system thus varies the surface speed according to the pre-programmed data and the result is our target slub yarn with cent percent set parameters.

Multi count - A multi count yarn is a fancy yarn having a different yarn count with various length. The multi count yarn length varies between 10 to 50 cm. This is achieved by changing the yarn diameter (mass) by applying different draft with corresponding variable front roller speed related to different yarn count. The twist for corresponding yarn count will change but the twist multiplier will be kept constant for different yarn count.

Multi twist - A multi twist yarn is a fancy yarn having a no change in mass. Draft is kept constant and with different twist multiplier and the yarn twist varies. The multi twist yarn length varies between 10 to 50 cm. Small or large twist changes in the yarn will affect the dyeing properties and this produces the dark and light shades in denim fabrics.

Multi effect - Multi-effect yarn is a slub yarn with multi-count and multi twist in yarn. This is achieved by variable twist factor combined with variable yarn diameter.

To produce multi effect in yarn the front and back rollers should change their surface speed continuously and also simultaneously in corresponding with each other to achieve variable draft and twist. The ULTRAspin uses coordinating system of motion controller for this purpose.

Download the e-brochure

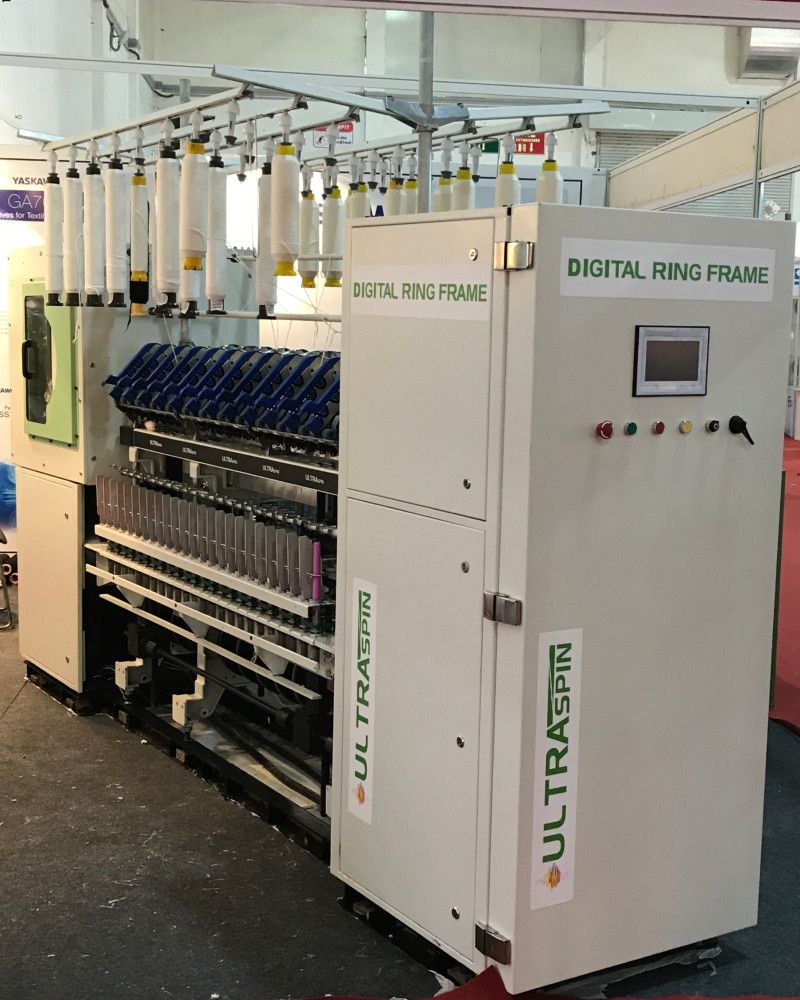

DIGITAL RING FRAME

In our digital ring frame built by highly advanced drafting system. Our machine produce Cotton yarn Synthetic yarn and count range from 6’s Ne to 200’s Ne and also able to produce specialty yarn like Slub yarn , Lycra yarn , Negative Slub Yarn , Slub Over Slub yarn, Injection Slub yarn , Multi count yarn, Multi Twist yarn , Multi count with Slub yarn , Multi twist with slub yarn, Multi count with Multi twist yarn , Multi Effect yarn.

All three rollers in Drafting system is individually driven by planetary gear box with servo motor. All three drafting rollers are highly synchronized and controlled by State of art advanced motion controller. Ring Rail motion is controlled by separate servo motor with direct drive system without belt to achieve accurate shape of cop. Spindle is driven by ac induction motor and its speed is controlled variable frequency drive in speed range from 1000 Rpm to 22000 Rpm

Download the e-brochure

SPECIFICATIONS
TECHNICAL DATA
Material	Cotton, Man-Made Fibres and blends
Application	short staple up to 60 mm
No.of spindles	48
Spindle Gauge -mm	70 mm
Spindle Make	TEXPARTS - SAURER
Lift - mm	170 mm
Spindle Drive System Method	4 Spindle Drive
Ring Diameter - mm	38 mm
Ring Make	TEXPARTS - SAURER
TOP ARM TYPE	SPRING LOADED - Individual Roll Pressure Adjustment
TOP ARM MAKE	TEXPARTS - SAURER
TOP ARM MODEL	PK2630SEH
Count Range	10s to 200 - Cotton
	6s to 120s PC & Synthetics
Draft	Up to 100
MAIN FEATURES	No Gear change in Ring Frame
	Twist and Draft set through Touch Screen Display
	Ring Rail Movement with Positive drive by Servo Motor ( No counter weight )
	Individual Servo Motor for Front,Middle and Back Bottom Rollers
	Spindle Speed Upto 22000 rpm
	Spindle and Fan motor run by vfd ( INVERTER DRIVE )
PROCESSING YARN TYPE	NORMAL YARN
	SLUB YARN
	NEGATIVE SLUB YARN
	SLUB OVER SLUB YARN
	MULTI COUNT
	MULTI TWIST
	MULTI EFFECT YARN
	MULTI COUNT WITH SLUB
	MULTI TWIST WITH SLUB
	MULTI EFFECT WITH SLUB
	INJECTION SLUB
	SHORT SLUB
